Custom subway icons #3514

2022-10-01T13:11:50Z

starsep commented

2022-10-01 13:11:50 +00:00

(Migrated from github.com)

See #3509

biodranik (Migrated from github.com) reviewed 2022-10-02 05:30:00 +00:00

biodranik (Migrated from github.com) left a comment

@vng can't we map icons directly to the value of the network tag? Then we don't need any additional code for it. Our icons system should support even Cyrillic names for icons, no?

Should this (or some other place in the code) be modified to correctly add new city icons?
Is there a way to add icons local for a specific country, not for the city?

    /// @todo Probably, we can delete this processing because cities
    /// are matched by limit rect in MatchCity.
    if (!subwayDone && types.IsSubwayStation(vTypes[i]))
    {
      TagProcessor(p).ApplyRules({
          {"network", "London Underground", [&params] { params.SetRwSubwayType("london"); }},
          {"network", "New York City Subway", [&params] { params.SetRwSubwayType("newyork"); }},
          {"network", "Московский метрополитен", [&params] { params.SetRwSubwayType("moscow"); }},
          {"network", "Петербургский метрополитен", [&params] { params.SetRwSubwayType("spb"); }},
          {"network", "Verkehrsverbund Berlin-Brandenburg",
           [&params] { params.SetRwSubwayType("berlin"); }},
          {"network", "Минский метрополитен", [&params] { params.SetRwSubwayType("minsk"); }},

          {"network", "Київський метрополітен", [&params] { params.SetRwSubwayType("kiev"); }},
          {"operator", "КП «Київський метрополітен»",
           [&params] { params.SetRwSubwayType("kiev"); }},

          {"network", "RATP", [&params] { params.SetRwSubwayType("paris"); }},
          {"network", "Metro de Barcelona", [&params] { params.SetRwSubwayType("barcelona"); }},

          {"network", "Metro de Madrid", [&params] { params.SetRwSubwayType("madrid"); }},
          {"operator", "Metro de Madrid", [&params] { params.SetRwSubwayType("madrid"); }},

          {"network", "Metropolitana di Roma", [&params] { params.SetRwSubwayType("roma"); }},
          {"network", "ATAC", [&params] { params.SetRwSubwayType("roma"); }},
      });

@vng can't we map icons directly to the value of the network tag? Then we don't need any additional code for it. Our icons system should support even Cyrillic names for icons, no? 1. Should this (or some other place in the code) be modified to correctly add new city icons? 2. Is there a way to add icons local for a specific country, not for the city? ``` /// @todo Probably, we can delete this processing because cities /// are matched by limit rect in MatchCity. if (!subwayDone && types.IsSubwayStation(vTypes[i])) { TagProcessor(p).ApplyRules({ {"network", "London Underground", [&params] { params.SetRwSubwayType("london"); }}, {"network", "New York City Subway", [&params] { params.SetRwSubwayType("newyork"); }}, {"network", "Московский метрополитен", [&params] { params.SetRwSubwayType("moscow"); }}, {"network", "Петербургский метрополитен", [&params] { params.SetRwSubwayType("spb"); }}, {"network", "Verkehrsverbund Berlin-Brandenburg", [&params] { params.SetRwSubwayType("berlin"); }}, {"network", "Минский метрополитен", [&params] { params.SetRwSubwayType("minsk"); }}, {"network", "Київський метрополітен", [&params] { params.SetRwSubwayType("kiev"); }}, {"operator", "КП «Київський метрополітен»", [&params] { params.SetRwSubwayType("kiev"); }}, {"network", "RATP", [&params] { params.SetRwSubwayType("paris"); }}, {"network", "Metro de Barcelona", [&params] { params.SetRwSubwayType("barcelona"); }}, {"network", "Metro de Madrid", [&params] { params.SetRwSubwayType("madrid"); }}, {"operator", "Metro de Madrid", [&params] { params.SetRwSubwayType("madrid"); }}, {"network", "Metropolitana di Roma", [&params] { params.SetRwSubwayType("roma"); }}, {"network", "ATAC", [&params] { params.SetRwSubwayType("roma"); }}, }); ```

starsep commented

2022-10-02 17:48:14 +00:00

(Migrated from github.com)

Another thing to tackle which might be fixed by changing approach are redundant translations: https://github.com/organicmaps/organicmaps/blob/master/data/strings/types_strings.txt#L17132-L17504

biodranik commented

2022-10-02 20:03:53 +00:00

(Migrated from github.com)

Translations now can use ref = to the base type, to avoid copy-pasting.

vng commented

2022-10-03 08:24:38 +00:00

(Migrated from github.com)

@biodranik Well, MatchCity by rect is more universal way. That's why I put todo to remove matching by network code.
network values are always fancy and should be added manually for each city.

@starsep

Now I see 2 Warsaw icons in repo: subway-warsaw-.svg and subway-warszawa-.svg AFAIR, warszawa is the correct one, but what is the warsaw icon about? Is it useful or we should delete it?
I usually recommend to use some existing deprecated entries when editing mapcss-mapping.csv instead of adding the new ones .. Near with existing subway entries.
You should manually edit 2 files here: mapcss-mapping.csv and Subways.mapcss. Other files are generated by generate_drules.sh script. See https://github.com/organicmaps/organicmaps/blob/master/docs/STYLES.md for details.
And also you should create 2 separate commits: 1 - Your edits. 2 - Styles regenerated commit.

@biodranik Well, MatchCity by rect is more universal way. That's why I put todo to remove matching by network code. network values are always _fancy_ and should be added manually for each city. @starsep 1. Now I see 2 Warsaw icons in repo: subway-warsaw-.svg and subway-warszawa-.svg AFAIR, _warszawa_ is the correct one, but what is the _warsaw_ icon about? Is it useful or we should delete it? 2. I usually recommend to use some existing _deprecated_ entries when editing mapcss-mapping.csv instead of adding the new ones .. Near with existing subway entries. 3. You should manually edit 2 files here: mapcss-mapping.csv and Subways.mapcss. Other files are generated by generate_drules.sh script. See https://github.com/organicmaps/organicmaps/blob/master/docs/STYLES.md for details. And also you should create 2 separate commits: 1 - Your edits. 2 - Styles regenerated commit.

👍 1

starsep commented

2022-10-03 08:34:09 +00:00

(Migrated from github.com)

warsaw icon is of WKD https://en.wikipedia.org/wiki/Warsaw_Commuter_Railway, light rail commuter line.
I will handle 2. and 3. in the evening

1. warsaw icon is of WKD https://en.wikipedia.org/wiki/Warsaw_Commuter_Railway, light rail commuter line. I will handle 2. and 3. in the evening

vng commented

2022-10-03 11:12:55 +00:00

(Migrated from github.com)

Hm, Subways.mapcss already have needed rules, we have needed icons.
The only thing is to add new types into mapcss-mapping.csv
Should we add only Warsaw, or all available cities with a bulk change ;)

Hm, Subways.mapcss already have needed rules, we have needed icons. The only thing is to add new types into mapcss-mapping.csv Should we add only Warsaw, or all available cities with a bulk change ;)

starsep commented

2022-10-03 22:02:15 +00:00

(Migrated from github.com)

I made Warsaw change in two commits. I regenerated mwm file and icons work correctly.

In Subways.mapcss there are 105 cities.
In mapcss-mapping.csv there 12 cities.

Bulk edit would mean extra 2*(105-12)=186 types
At the moment there are 374 deprecated|deprecated types, so it's enough to only replace deprecated one.
I can work on a bulk change.
Is it important to keep subway types close together? I can take first 186 first deprecated types for example.

Just speculating, please correct me if I am wrong: number in mapcss-mapping.csv is used as some kind of type id in mwm file. And it cannot be changed to keep backwards compatibilty with old map files.

Rebuilding index only i.e. generator_tool --generate_index=true wouldn't work here to test all cities affected, right?
To test every city I should either regenerate all map files (takes a ton of time) or make a final testing just before release once new maps are generated?

I made Warsaw change in two commits. I regenerated mwm file and icons work correctly. In Subways.mapcss there are 105 cities. In mapcss-mapping.csv there 12 cities. Bulk edit would mean extra 2*(105-12)=186 types At the moment there are 374 `deprecated|deprecated` types, so it's enough to only replace deprecated one. I can work on a bulk change. Is it important to keep subway types close together? I can take first 186 first deprecated types for example. Just speculating, please correct me if I am wrong: number in mapcss-mapping.csv is used as some kind of type id in mwm file. And it cannot be changed to keep backwards compatibilty with old map files. Rebuilding index only i.e. `generator_tool --generate_index=true` wouldn't work here to test all cities affected, right? To test every city I should either regenerate all map files (takes a ton of time) or make a final testing just before release once new maps are generated?

biodranik commented

2022-10-03 22:47:27 +00:00

(Migrated from github.com)

I'll throw my 5 cents here: how many unique transport lines (not only the metro!) with unique icons are there in the world? Is it the best approach to manually hardcode them in types? Isn't it prone to mistakes?

What about other icons unique per country level (e.g. a driving training school sign)? What approach can be applied there? What other per-country icons are there?

Are there any alternative approaches? E.g. store the type/icon/network in the feature's metadata?

I'll throw my 5 cents here: how many unique transport lines (not only the metro!) with unique icons are there in the world? Is it the best approach to manually hardcode them in types? Isn't it prone to mistakes? What about other icons unique per country level (e.g. a driving training school sign)? What approach can be applied there? What other per-country icons are there? Are there any alternative approaches? E.g. store the type/icon/network in the feature's metadata?

vng (Migrated from github.com) approved these changes 2022-10-04 11:53:23 +00:00

vng commented

2022-10-04 11:57:27 +00:00

(Migrated from github.com)

@biodranik

At this moment we have only classifier type simple mechanics to draw icons. I don't see problems to make many types here.
Can't say is it good or not to have unique-per-country icons like driving schools .. If yes, we should invent some other mechanics and it's a long story ..
Metadata is not as good as classifier type for fast fetching, but it's used now in 3D-buildings.

@biodranik - At this moment we have only classifier type simple mechanics to draw icons. I don't see problems to make many types here. - Can't say is it good or not to have unique-per-country icons like driving schools .. If yes, we should invent some other mechanics and it's a long story .. - Metadata is not as good as classifier type for fast fetching, but it's used now in 3D-buildings.

starsep commented

2022-10-04 19:28:03 +00:00

(Migrated from github.com)

I pushed commit with missing city subway types (and styles regenerated afterwards). Generated with:

MISSING = [
    "adana",
    "algiers",
    "almaty",
    "amsterdam",
    "ankara",
    "athens",
    "baku",
    "bangkok",
    "beijing",
    "bengalore",
    "bilbao",
    "brasilia",
    "brescia",
    "brussels",
    "bucharest",
    "budapest",
    "buenos_aires",
    "bursa",
    "cairo",
    "caracas",
    "catania",
    "changchun",
    "chengdu",
    "chicago",
    "chongqing",
    "dalian",
    "delhi",
    "dnepro",
    "dubai",
    "ekb",
    "fukuoka",
    "glasgow",
    "guangzhou",
    "hamburg",
    "helsinki",
    "hiroshima",
    "isfahan",
    "istanbul",
    "izmir",
    "kazan",
    "kharkiv",
    "kobe",
    "kolkata",
    "kunming",
    "kyoto",
    "la",
    "lausanne",
    "lille",
    "lima",
    "lisboa",
    "lisbon",
    "lyon",
    "malaga",
    "manila",
    "maracaibo",
    "mashhad",
    "mecca",
    "medellin",
    "mexico",
    "milan",
    "montreal",
    "munchen",
    "nagoya",
    "nnov",
    "novosibirsk",
    "osaka",
    "oslo",
    "palma",
    "panama",
    "philadelphia",
    "pyongyang",
    "rennes",
    "rio",
    "rotterdam",
    "samara",
    "santiago",
    "santo_domingo",
    "saopaulo",
    "sapporo",
    "sendai",
    "sf",
    "shanghai",
    "shiraz",
    "sofia",
    "stockholm",
    "tabriz",
    "taipei",
    "taoyuan",
    "tashkent",
    "tbilisi",
    "tianjin",
    "tokyo",
    "valencia",
    "vienna",
    "washington",
    "wuhan",
    "yerevan",
    "yokohama",
]

with open("data/mapcss-mapping.csv", "r") as f:
    mappings = f.readlines()

station = True
cityId = 0
with open("data/mapcss-mapping.csv", "w") as f:
    for mapping in mappings:
        if "deprecated" not in mapping or (cityId == len(MISSING) and not station):
            f.write(mapping)
            continue
        if cityId == len(MISSING):
            cityId = 0
            station = False
        typeId = int(mapping.split(";")[1])
        city = MISSING[cityId]
        cityId += 1
        if station:
            f.write(
                f"railway|station|subway|{city};[railway=station][transport=subway][city={city}],[railway=station][station=subway][city={city}];;name;int_name;{typeId};\n"
            )
        else:
            f.write(
                f"railway|subway_entrance|{city};[railway=subway_entrance][city={city}];;name;int_name;{typeId};\n"
            )

I pushed commit with missing city subway types (and styles regenerated afterwards). Generated with: ```python MISSING = [ "adana", "algiers", "almaty", "amsterdam", "ankara", "athens", "baku", "bangkok", "beijing", "bengalore", "bilbao", "brasilia", "brescia", "brussels", "bucharest", "budapest", "buenos_aires", "bursa", "cairo", "caracas", "catania", "changchun", "chengdu", "chicago", "chongqing", "dalian", "delhi", "dnepro", "dubai", "ekb", "fukuoka", "glasgow", "guangzhou", "hamburg", "helsinki", "hiroshima", "isfahan", "istanbul", "izmir", "kazan", "kharkiv", "kobe", "kolkata", "kunming", "kyoto", "la", "lausanne", "lille", "lima", "lisboa", "lisbon", "lyon", "malaga", "manila", "maracaibo", "mashhad", "mecca", "medellin", "mexico", "milan", "montreal", "munchen", "nagoya", "nnov", "novosibirsk", "osaka", "oslo", "palma", "panama", "philadelphia", "pyongyang", "rennes", "rio", "rotterdam", "samara", "santiago", "santo_domingo", "saopaulo", "sapporo", "sendai", "sf", "shanghai", "shiraz", "sofia", "stockholm", "tabriz", "taipei", "taoyuan", "tashkent", "tbilisi", "tianjin", "tokyo", "valencia", "vienna", "washington", "wuhan", "yerevan", "yokohama", ] with open("data/mapcss-mapping.csv", "r") as f: mappings = f.readlines() station = True cityId = 0 with open("data/mapcss-mapping.csv", "w") as f: for mapping in mappings: if "deprecated" not in mapping or (cityId == len(MISSING) and not station): f.write(mapping) continue if cityId == len(MISSING): cityId = 0 station = False typeId = int(mapping.split(";")[1]) city = MISSING[cityId] cityId += 1 if station: f.write( f"railway|station|subway|{city};[railway=station][transport=subway][city={city}],[railway=station][station=subway][city={city}];;name;int_name;{typeId};\n" ) else: f.write( f"railway|subway_entrance|{city};[railway=subway_entrance][city={city}];;name;int_name;{typeId};\n" ) ```

vng commented

2022-10-04 19:45:09 +00:00

(Migrated from github.com)

Holy moly ;) Your efforts are impressive :)

I'd like to keep deprecates numbers from 0 to 700 reserved for more useful types. Generic rule is less number -> more frequent type. Can you put this subways starting from say deprecated id = 747 and below ..

@biodranik @rtsisyk Are you ok if we will make bulk insert of all existing city metro icon types?

Holy moly ;) Your efforts are impressive :) I'd like to keep deprecates numbers from 0 to 700 reserved for more _useful_ types. Generic rule is less number -> more frequent type. Can you put this subways starting from say deprecated id = 747 and below .. @biodranik @rtsisyk Are you ok if we will make bulk insert of all existing city metro icon types?

vng commented

2022-10-04 19:48:08 +00:00

(Migrated from github.com)

Or even put this types to the bottom of mapcss-mapping.csv. I couldn't imagine that you will make this bulk insert ;)

starsep commented

2022-10-04 20:11:44 +00:00

(Migrated from github.com)

Why lower ids are reserved for useful types? Just a convention or is some dynamic length binary coding used?

I put them on the bottom, generated with:

MISSING = [
    "adana",
    "algiers",
    "almaty",
    "amsterdam",
    "ankara",
    "athens",
    "baku",
    "bangkok",
    "beijing",
    "bengalore",
    "bilbao",
    "brasilia",
    "brescia",
    "brussels",
    "bucharest",
    "budapest",
    "buenos_aires",
    "bursa",
    "cairo",
    "caracas",
    "catania",
    "changchun",
    "chengdu",
    "chicago",
    "chongqing",
    "dalian",
    "delhi",
    "dnepro",
    "dubai",
    "ekb",
    "fukuoka",
    "glasgow",
    "guangzhou",
    "hamburg",
    "helsinki",
    "hiroshima",
    "isfahan",
    "istanbul",
    "izmir",
    "kazan",
    "kharkiv",
    "kobe",
    "kolkata",
    "kunming",
    "kyoto",
    "la",
    "lausanne",
    "lille",
    "lima",
    "lisboa",
    "lisbon",
    "lyon",
    "malaga",
    "manila",
    "maracaibo",
    "mashhad",
    "mecca",
    "medellin",
    "mexico",
    "milan",
    "montreal",
    "munchen",
    "nagoya",
    "nnov",
    "novosibirsk",
    "osaka",
    "oslo",
    "palma",
    "panama",
    "philadelphia",
    "pyongyang",
    "rennes",
    "rio",
    "rotterdam",
    "samara",
    "santiago",
    "santo_domingo",
    "saopaulo",
    "sapporo",
    "sendai",
    "sf",
    "shanghai",
    "shiraz",
    "sofia",
    "stockholm",
    "tabriz",
    "taipei",
    "taoyuan",
    "tashkent",
    "tbilisi",
    "tianjin",
    "tokyo",
    "valencia",
    "vienna",
    "washington",
    "wuhan",
    "yerevan",
    "yokohama",
]

typeId = 1356
with open("data/mapcss-mapping.csv", "a") as f:
    for station in [True, False]:
        for city in MISSING:
            if station:
                f.write(
                    f"railway|station|subway|{city};[railway=station][transport=subway][city={city}],[railway=station][station=subway][city={city}];;name;int_name;{typeId};\n"
                )
            else:
                f.write(
                    f"railway|subway_entrance|{city};[railway=subway_entrance][city={city}];;name;int_name;{typeId};\n"
                )
            typeId += 1

Why lower ids are reserved for useful types? Just a convention or is some dynamic length binary coding used? I put them on the bottom, generated with: ```python MISSING = [ "adana", "algiers", "almaty", "amsterdam", "ankara", "athens", "baku", "bangkok", "beijing", "bengalore", "bilbao", "brasilia", "brescia", "brussels", "bucharest", "budapest", "buenos_aires", "bursa", "cairo", "caracas", "catania", "changchun", "chengdu", "chicago", "chongqing", "dalian", "delhi", "dnepro", "dubai", "ekb", "fukuoka", "glasgow", "guangzhou", "hamburg", "helsinki", "hiroshima", "isfahan", "istanbul", "izmir", "kazan", "kharkiv", "kobe", "kolkata", "kunming", "kyoto", "la", "lausanne", "lille", "lima", "lisboa", "lisbon", "lyon", "malaga", "manila", "maracaibo", "mashhad", "mecca", "medellin", "mexico", "milan", "montreal", "munchen", "nagoya", "nnov", "novosibirsk", "osaka", "oslo", "palma", "panama", "philadelphia", "pyongyang", "rennes", "rio", "rotterdam", "samara", "santiago", "santo_domingo", "saopaulo", "sapporo", "sendai", "sf", "shanghai", "shiraz", "sofia", "stockholm", "tabriz", "taipei", "taoyuan", "tashkent", "tbilisi", "tianjin", "tokyo", "valencia", "vienna", "washington", "wuhan", "yerevan", "yokohama", ] typeId = 1356 with open("data/mapcss-mapping.csv", "a") as f: for station in [True, False]: for city in MISSING: if station: f.write( f"railway|station|subway|{city};[railway=station][transport=subway][city={city}],[railway=station][station=subway][city={city}];;name;int_name;{typeId};\n" ) else: f.write( f"railway|subway_entrance|{city};[railway=subway_entrance][city={city}];;name;int_name;{typeId};\n" ) typeId += 1 ```

starsep commented

2022-10-04 20:41:49 +00:00

(Migrated from github.com)

Test failed: https://github.com/organicmaps/organicmaps/actions/runs/3185151162/jobs/5194386832

2022-10-04 20:37:10,822 The server's life has come to an end, pid: 10682

At first I thought tests take longer now due to extra types but previous jobs take even more time. I guess it's unrelated to my change.

Test failed: https://github.com/organicmaps/organicmaps/actions/runs/3185151162/jobs/5194386832 > 2022-10-04 20:37:10,822 The server's life has come to an end, pid: 10682 At first I thought tests take longer now due to extra types but previous jobs take even more time. I guess it's unrelated to my change.

vng commented

2022-10-05 07:05:11 +00:00

(Migrated from github.com)

Failed test say that:

no clear icons for [7: subway-bilbao-m subway-bilbao-s subway-hamburg-m subway-hamburg-s subway-lausanne-s subway-munchen-m subway-munchen-s ]
no night icons for [20: subway-bilbao-m subway-bilbao-s subway-hamburg-m subway-hamburg-s subway-lausanne-m subway-lausanne-s subway-lille-m subway-lille-s subway-lima-m subway-lima-s subway-lisboa-m subway-lisboa-s subway-losangeles-m subway-losangeles-s subway-lyon-m subway-lyon-s subway-munchen-m subway-munchen-s subway-vienna-m subway-vienna-s ]

I suppose that night icons was made from clear ones using some color/opacity transformation.
Is it possible to get Hamburg or Munchen svg metro icons somewhere? Why did you include this cities into your list?

Failed test say that: - no _clear_ icons for [7: subway-bilbao-m subway-bilbao-s subway-hamburg-m subway-hamburg-s subway-lausanne-s subway-munchen-m subway-munchen-s ] - no _night_ icons for [20: subway-bilbao-m subway-bilbao-s subway-hamburg-m subway-hamburg-s subway-lausanne-m subway-lausanne-s subway-lille-m subway-lille-s subway-lima-m subway-lima-s subway-lisboa-m subway-lisboa-s subway-losangeles-m subway-losangeles-s subway-lyon-m subway-lyon-s subway-munchen-m subway-munchen-s subway-vienna-m subway-vienna-s ] I suppose that night icons was made from clear ones using some color/opacity transformation. Is it possible to get Hamburg or Munchen svg metro icons somewhere? Why did you include this cities into your list?

starsep commented

2022-10-05 07:19:00 +00:00

(Migrated from github.com)

I simply took all missing cities with styling defined in https://github.com/organicmaps/organicmaps/blob/master/data/styles/clear/include/Subways.mapcss
I will try to find those icons, if I won't be able to do so I will remove those types.

I simply took all missing cities with styling defined in https://github.com/organicmaps/organicmaps/blob/master/data/styles/clear/include/Subways.mapcss I will try to find those icons, if I won't be able to do so I will remove those types.

starsep commented

2022-10-05 07:27:28 +00:00

(Migrated from github.com)

There is general icon U-Bahn in Germany
https://commons.m.wikimedia.org/wiki/File:U-Bahn.svg
@AlertSubject perhaps you can find more specific icons or is this general one used in those cities? I think it is in Hamburg, I haven't been to Munich.

There is general icon U-Bahn in Germany https://commons.m.wikimedia.org/wiki/File:U-Bahn.svg @AlertSubject perhaps you can find more specific icons or is this general one used in those cities? I think it is in Hamburg, I haven't been to Munich.

Outlet2048 commented

2022-10-05 07:30:44 +00:00

(Migrated from github.com)

There is general icon U-Bahn in Germany
https://commons.m.wikimedia.org/wiki/File:U-Bahn.svg
@AlertSubject perhaps you can find more specific icons or is this general one used in those cities? I think it is in Hamburg, I haven't been to Munich.

Yeah this is indeed the one for Hamburg
But I've never seen it used on the map

This is a U-Bahn Station in Hamburg and there is no specific icon displayed sadly
Neither is the S-Bahn icon
And I believe the S-Bahn icon is used all over Germany as they are operated by Deutsche Bahn

> There is general icon U-Bahn in Germany > https://commons.m.wikimedia.org/wiki/File:U-Bahn.svg > @AlertSubject perhaps you can find more specific icons or is this general one used in those cities? I think it is in Hamburg, I haven't been to Munich. > Yeah this is indeed the one for Hamburg But I've never seen it used on the map ![Screenshot_2022-10-05-09-29-48-63_75d0290a7c00525acd83c0ab8700d64c.jpg](https://user-images.githubusercontent.com/72819077/194004875-2b419648-938b-40a8-b399-00ab0b3479f5.jpg) This is a U-Bahn Station in Hamburg and there is no specific icon displayed sadly Neither is the S-Bahn icon And I believe the S-Bahn icon is used all over Germany as they are operated by Deutsche Bahn

vng commented

2022-10-05 11:18:16 +00:00

(Migrated from github.com)

So make sense to rename subway-berlin icon to subway-ubahn and add Berlin, Munchen, Hamburg types manually with reference to subway-ubahn.

👍 2

Outlet2048 commented

2022-10-05 12:57:16 +00:00

(Migrated from github.com)

https://commons.m.wikimedia.org/wiki/Category:S-Bahn_logos

Here's a list of some German S-Bahn icons
Hamburg is in there as well for example
Berlin too

https://commons.m.wikimedia.org/wiki/Category:S-Bahn_logos Here's a list of some German S-Bahn icons Hamburg is in there as well for example Berlin too

👍 1

starsep commented

2022-10-05 19:30:09 +00:00

(Migrated from github.com)

I renamed subway-wien to subway-vienna. I made night version icons by transforming clear (day) ones.
I made ubahn icon out wikimedia svg and used it for Hamburg and Munich

To get night icon from clear icon: opacity is changed from 0.6 to 0.4 and color is multiplied by some factor ~0.6

def night(rgb: str) -> str:
    r, g, b = int(rgb[:2], 16), int(rgb[2:4], 16), int(rgb[4:6], 16)
    transform = lambda x: (hex(int(x * 0.6))[2:]).zfill(2).upper()
    return transform(r) + transform(g) + transform(b)
# night("1565C0") == "0C3C73"

missed [3: subway-bilbao-m subway-bilbao-s subway-lausanne-s ]

I renamed subway-wien to subway-vienna. I made night version icons by transforming clear (day) ones. I made ubahn icon out wikimedia svg and used it for Hamburg and Munich To get night icon from clear icon: opacity is changed from 0.6 to 0.4 and color is multiplied by some factor ~0.6 ```python def night(rgb: str) -> str: r, g, b = int(rgb[:2], 16), int(rgb[2:4], 16), int(rgb[4:6], 16) transform = lambda x: (hex(int(x * 0.6))[2:]).zfill(2).upper() return transform(r) + transform(g) + transform(b) # night("1565C0") == "0C3C73" ``` missed [3: subway-bilbao-m subway-bilbao-s subway-lausanne-s ]

starsep commented

2022-10-05 19:33:34 +00:00

(Migrated from github.com)

I don't know what to do with Metro Bilbao Logo: https://en.wikipedia.org/wiki/File:Logo_Metro_Bilbao.svg
I will make subway-lausanne-s by transforming subway-lausanne-m

I don't know what to do with Metro Bilbao Logo: https://en.wikipedia.org/wiki/File:Logo_Metro_Bilbao.svg I will make subway-lausanne-s by transforming subway-lausanne-m

vng commented

2022-10-05 19:34:48 +00:00

(Migrated from github.com)

Aren't subway-berlin and new subway-ubahn the same icons?
Why subway-ubahn-m and subway-ubahn-s have different background colors?

- Aren't subway-berlin and new subway-ubahn the same icons? - Why subway-ubahn-m and subway-ubahn-s have different background colors?

vng commented

2022-10-05 19:37:23 +00:00

(Migrated from github.com)

Also subway-lausanne-m.svg doesn't have corresponding -s version ..

vng commented

2022-10-05 19:38:11 +00:00

(Migrated from github.com)

I think, we can just rename berlin icon to ubahn, no?

starsep commented

2022-10-05 19:38:55 +00:00

(Migrated from github.com)

Aren't subway-berlin and new subway-ubahn the same icons?

Almost the same, I can remove subway-berlin and use subway-ubahn for Berlin.

Why subway-ubahn-m and subway-ubahn-s have different background colors?

They seem to have the same background color

I think, we can just rename berlin icon to ubahn, no?

Sure, I can use Berlin icon as ubahn as well

> Aren't subway-berlin and new subway-ubahn the same icons? Almost the same, I can remove subway-berlin and use subway-ubahn for Berlin. > Why subway-ubahn-m and subway-ubahn-s have different background colors? They seem to have the same background color > I think, we can just rename berlin icon to ubahn, no? Sure, I can use Berlin icon as ubahn as well

starsep commented

2022-10-05 19:42:38 +00:00

(Migrated from github.com)

Why subway-ubahn-m and subway-ubahn-s have different background colors?

They seem to have the same background color

I missed opacity, I will fix that

> > Why subway-ubahn-m and subway-ubahn-s have different background colors? > > They seem to have the same background color I missed opacity, I will fix that

vng commented

2022-10-05 19:42:42 +00:00

(Migrated from github.com)

To clarify, github shows me this:
Screenshot 2022-10-05 at 22 41 49

I think, better to rename existing Berlin, instead of adding the new one.

To clarify, github shows me this: <img width="421" alt="Screenshot 2022-10-05 at 22 41 49" src="https://user-images.githubusercontent.com/175612/194148357-384d3a15-1bc2-432b-ab80-eee8d9e41c0f.png"> I think, better to rename existing Berlin, instead of adding the new one.

👍 1

starsep commented

2022-10-05 20:04:00 +00:00

(Migrated from github.com)

Berlin icon renamed to U-Bahn, subway-lausanne-s created from subway-lausanne-m.
Only Bilbao missing: https://en.wikipedia.org/wiki/File:Logo_Metro_Bilbao.svg

Berlin icon renamed to U-Bahn, subway-lausanne-s created from subway-lausanne-m. Only Bilbao missing: https://en.wikipedia.org/wiki/File:Logo_Metro_Bilbao.svg

vng (Migrated from github.com) reviewed 2022-10-05 20:06:49 +00:00

data/styles/clear/include/Subways.mapcss

vng (Migrated from github.com) commented

2022-10-05 20:06:02 +00:00

Bad change here. "ion"

starsep (Migrated from github.com) reviewed 2022-10-05 20:15:29 +00:00

data/styles/clear/include/Subways.mapcss

starsep (Migrated from github.com) commented

2022-10-05 20:15:29 +00:00

Thanks for spotting that, fixed!

vng commented

2022-10-05 20:30:33 +00:00

(Migrated from github.com)

Great! Let see what CI checks will show. Also:

could you please make script change for new subway strings (types_strings.txt) like:

  [type.railway.station.subway.CITY]
    ref = type.railway.station.subway

Rebase you branch on fresh master (where your previous merged subway strings) and squash commits on 3 like:

Added subway icons for cities
[styles] Regenerated
[strings] Regenerated

Great! Let see what CI checks will show. Also: 1. could you please make script change for new subway strings (types_strings.txt) like: ``` [type.railway.station.subway.CITY] ref = type.railway.station.subway ``` 2. Rebase you branch on fresh master (where your previous merged subway strings) and squash commits on 3 like: - Added subway icons for cities - [styles] Regenerated - [strings] Regenerated

👍 1

biodranik commented

2022-10-05 21:19:58 +00:00

(Migrated from github.com)

Can you please show several screenshots of how it looks now on the map? I'm afraid the map becomes less readable/intuitive. Of course, all local people know metro symbols. But what about travellers? When you come into some city, and want to find the closest metro on the map, how can you understand that it's some, say, 'S' symbol?

starsep commented

2022-10-05 21:32:57 +00:00

(Migrated from github.com)

I can make some screenshots tomorrow. I think most of them are variants of M. I didn't add S Bahn icon.
As a traveller I would first turn on subway layer to see what lines are in the city. I think those icons allow to find subway station nearby easier without turning a layer or searching.

I can make some screenshots tomorrow. I think most of them are variants of M. I didn't add S Bahn icon. As a traveller I would first turn on subway layer to see what lines are in the city. I think those icons allow to find subway station nearby easier without turning a layer or searching.

matheusgomesms commented

2022-10-05 21:38:20 +00:00

(Migrated from github.com)

For Bilbao, you can use just the red rings. I've lived there and it is the only logo on metro entrances.

For Bilbao, you can use just the red rings. I've lived there and it is [the only logo on metro entrances.](https://www.google.com/maps/@43.2632459,-2.9343872,3a,75y,154.25h,94.73t/data=!3m6!1e1!3m4!1sI-EcZ9w2DPIYzgWZt5BQTA!2e0!7i16384!8i8192)

Outlet2048 commented

2022-10-05 22:11:02 +00:00

(Migrated from github.com)

Can you please show several screenshots of how it looks now on the map? I'm afraid the map becomes less readable/intuitive. Of course, all local people know metro symbols. But what about travellers? When you come into some city, and want to find the closest metro on the map, how can you understand that it's some, say, 'S' symbol?

The S symbol on green background is found in all the train stations and all the trains. It's shown on all the boards that navigate you to the train platforms
I'm pretty sure a visitor will quickly recognize the familiar symbol and be glad to see it on the map

> Can you please show several screenshots of how it looks now on the map? I'm afraid the map becomes less readable/intuitive. Of course, all local people know metro symbols. But what about travellers? When you come into some city, and want to find the closest metro on the map, how can you understand that it's some, say, 'S' symbol? The S symbol on green background is found in all the train stations and all the trains. It's shown on all the boards that navigate you to the train platforms I'm pretty sure a visitor will quickly recognize the familiar symbol and be glad to see it on the map

matheusgomesms (Migrated from github.com) approved these changes 2022-10-05 22:39:14 +00:00

matheusgomesms (Migrated from github.com) left a comment

I've reviewed and fixed Portuguese strings. Looks good to me!

vng commented

2022-10-06 05:50:03 +00:00

(Migrated from github.com)

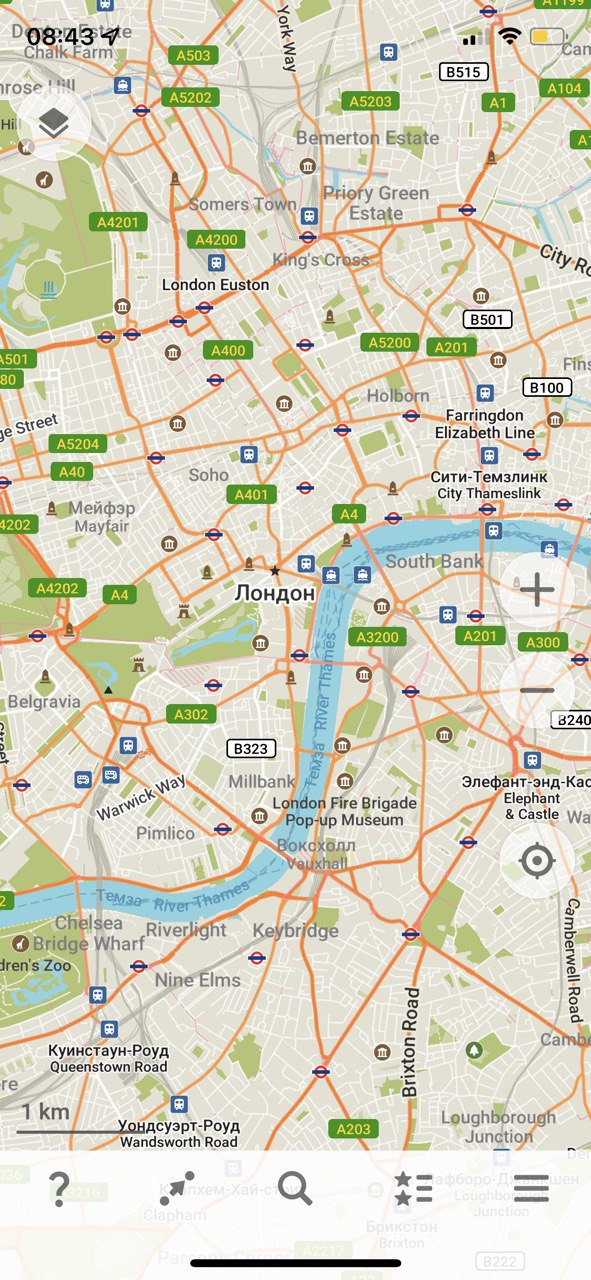

@biodranik You can check it now for some major cities:

@biodranik You can check it now for some major cities: ![photo_2022-10-06 08 47 29](https://user-images.githubusercontent.com/175612/194224239-78c1f170-c900-4362-8fb6-9e9f5240409d.jpeg) ![photo_2022-10-06 08 47 38](https://user-images.githubusercontent.com/175612/194224243-81fbd320-db33-445d-b72f-4c563cd53b0c.jpeg) ![photo_2022-10-06 08 47 42](https://user-images.githubusercontent.com/175612/194224247-9dc85750-6c4e-4d33-9551-b3fbdda7e3a6.jpeg) ![photo_2022-10-06 08 47 45](https://user-images.githubusercontent.com/175612/194224249-1df41402-e09e-4174-9bc2-e94c2a4307d1.jpeg)

❤️ 1

vng commented

2022-10-06 05:51:37 +00:00

(Migrated from github.com)

Moreover, I'd prefer to draw small metro icons 1 zoom level earlier. Look how good it looks in Moscow, want to tap this icon first ;)

Moreover, I'd prefer to draw small metro icons 1 zoom level earlier. Look how good it looks in Moscow, want to tap this icon first ;) ![photo_2022-10-06 08 47 35](https://user-images.githubusercontent.com/175612/194224494-7562d2e4-e58b-48c0-90ec-b0c129db7541.jpeg)

starsep commented

2022-10-06 06:59:54 +00:00

(Migrated from github.com)

@matheusgomesms

I've reviewed and fixed Portuguese strings. Looks good to me!

You should modify only type.railway.station.subway and type.railway.subway_entrance in a file data/strings/types_strings.txt
All type.railway.station.subway.$city and type.railway.subway_entrance.$city strings use the value of base type. All strings.txt (for Android) and Localizable.strings (for iOS) are generated automatically. See https://github.com/organicmaps/organicmaps/blob/master/docs/TRANSLATIONS.md for more details.
I am sorry that you lost some time, I will apply your suggestions in the evening. I had no intention of asking translations-* groups for review, they have been added automatically due to modification of relevant files.

@vng thanks for screenshots!

@matheusgomesms > I've reviewed and fixed Portuguese strings. Looks good to me! You should modify only `type.railway.station.subway` and `type.railway.subway_entrance` in a file data/strings/types_strings.txt All `type.railway.station.subway.$city` and `type.railway.subway_entrance.$city` strings use the value of base type. All strings.txt (for Android) and Localizable.strings (for iOS) are generated automatically. See https://github.com/organicmaps/organicmaps/blob/master/docs/TRANSLATIONS.md for more details. I am sorry that you lost some time, I will apply your suggestions in the evening. I had no intention of asking translations-* groups for review, they have been added automatically due to modification of relevant files. @vng thanks for screenshots!

starsep commented

2022-10-06 15:11:54 +00:00

(Migrated from github.com)

Rebased and regenerated
@matheusgomesms I added your Portuguese fixes here: b4eb2df3bc7a9bbdf5a677fe16a9958749454035

Rebased and regenerated @matheusgomesms I added your Portuguese fixes here: b4eb2df3bc7a9bbdf5a677fe16a9958749454035

matheusgomesms commented

2022-10-06 16:03:22 +00:00

(Migrated from github.com)

Rebased and regenerated @matheusgomesms I added your Portuguese fixes here: b4eb2df

Hi @starsep thanks for that! Just wanted to point out that the PT-BR fix is still missing. These are the correct strings:

data/strings/types_strings.txt
line 16674: pt-BR = Estação de metrô
line 17075: pt-BR = Entrada do metrô

Could you please fix that? I couldn't do it by myself, unfortunately.

> Rebased and regenerated @matheusgomesms I added your Portuguese fixes here: [b4eb2df](https://git.omaps.dev/organicmaps/organicmaps/commit/b4eb2df3bc7a9bbdf5a677fe16a9958749454035) Hi @starsep thanks for that! Just wanted to point out that the PT-BR fix is still missing. These are the correct strings: `data/strings/types_strings.txt` line 16674: pt-BR = Estação de metrô line 17075: pt-BR = Entrada do metrô Could you please fix that? I couldn't do it by myself, unfortunately.

MetehanOzyurek (Migrated from github.com) approved these changes 2022-10-06 16:54:56 +00:00

LaoshuBaby (Migrated from github.com) reviewed 2022-10-06 19:48:29 +00:00

android/res/values-zh/strings.xml

LaoshuBaby (Migrated from github.com) commented

2022-10-06 19:48:29 +00:00

In Simplified Chinese, I'd prefer use "地铁出入口" for "Subway Entrance", if we don't clarify enter or exit behavior.

LaoshuBaby (Migrated from github.com) reviewed 2022-10-06 19:50:37 +00:00

android/res/values-zh-rTW/strings.xml


				@ -1276,30 +1276,226 @@

					<string name="type.railway.station">火車站</string>

LaoshuBaby (Migrated from github.com) commented

2022-10-06 19:50:36 +00:00

@s8321414
↑ native speaker of Traditional Chinese
I guess he'll prefer "捷運車站" more than "地鐵車站", so I call him for help and waiting for advice.

@s8321414 ↑ native speaker of Traditional Chinese I guess he'll prefer "捷運車站" more than "地鐵車站", so I call him for help and waiting for advice.

LaoshuBaby (Migrated from github.com) requested changes 2022-10-06 19:53:02 +00:00

LaoshuBaby (Migrated from github.com) left a comment

Zh-Hant: Waiting native speaker's advice
zh-Hans: If we don't use 2 type to distinguish enter or exit subway system, I prefer "地铁出入口"

+ Zh-Hant: Waiting native speaker's advice + zh-Hans: If we don't use 2 type to distinguish enter or exit subway system, I prefer "地铁出入口"

biodranik commented

2022-10-06 20:06:59 +00:00

(Migrated from github.com)

@vng thanks for the screenshots. As I expected, the map looks a bit polluted. The good news is that it can be workarounded now by reducing the size of all metro icons on observation zoom levels.

Google draws small icons on observation zoom levels and increases their size when you zoom in, Apple draws dots until you zoom in to almost the max zoom level. Check it yourself and compare.

Metro icons on a "general", universal map style should not pollute it, we'll implement a public transport style for that later.

@vng thanks for the screenshots. As I expected, the map looks a bit polluted. The good news is that it can be workarounded now by reducing the size of all metro icons on observation zoom levels. Google draws small icons on observation zoom levels and increases their size when you zoom in, Apple draws dots until you zoom in to almost the max zoom level. Check it yourself and compare. Metro icons on a "general", universal map style should not pollute it, we'll implement a public transport style for that later.

vng commented

2022-10-06 21:26:02 +00:00

(Migrated from github.com)

@biodranik This is a current prod screenshots and generic metro icon vs individual metro icons - "pollution" will be the same or even worse with generic icon.
@starsep Let remove Bilbao because we don't have icons for it. Also, please, take into account Chinese comments.

@biodranik This is a current prod screenshots and generic metro icon vs individual metro icons - "pollution" will be the same or even worse with generic icon. @starsep Let remove Bilbao because we don't have icons for it. Also, please, take into account Chinese comments.

s8321414 (Migrated from github.com) reviewed 2022-10-06 23:57:58 +00:00

android/res/values-zh-rTW/strings.xml


				@ -1276,30 +1276,226 @@

					<string name="type.railway.station">火車站</string>

s8321414 (Migrated from github.com) commented

2022-10-06 23:57:58 +00:00

@s8321414 ↑ native speaker of Traditional Chinese I guess he'll prefer "捷運車站" more than "地鐵車站", so I call him for help and waiting for advice.

For subway station, we use 「捷運站」or「捷運車站」 in Taiwan.

> @s8321414 ↑ native speaker of Traditional Chinese I guess he'll prefer "捷運車站" more than "地鐵車站", so I call him for help and waiting for advice. For subway station, we use 「捷運站」or「捷運車站」 in Taiwan.

s8321414 commented

2022-10-06 23:58:42 +00:00

(Migrated from github.com)

Zh-Hant: Waiting native speaker's advice

zh-Hans: If we don't use 2 type to distinguish enter or exit subway system, I prefer "地铁出入口"

Just replied :-)
organicmaps/organicmaps#3514

> * Zh-Hant: Waiting native speaker's advice > > * zh-Hans: If we don't use 2 type to distinguish enter or exit subway system, I prefer "地铁出入口" Just replied :-) https://git.omaps.dev/organicmaps/organicmaps/pulls/3514#discussion_r989567200

jimcarst (Migrated from github.com) approved these changes 2022-10-07 10:01:47 +00:00

matheusgomesms commented

2022-10-07 10:31:54 +00:00

(Migrated from github.com)

@starsep Let remove Bilbao because we don't have icons for it. Also, please, take into account Chinese comments.

Please see my comment about Bilbao.

> @starsep Let remove Bilbao because we don't have icons for it. Also, please, take into account Chinese comments. Please see my [comment ](https://git.omaps.dev/organicmaps/organicmaps/pulls/3514#issuecomment-1269007134) about Bilbao.

starsep commented

2022-10-07 19:03:40 +00:00

(Migrated from github.com)

@matheusgomesms
I removed Bilbao for now. We could theoretically use this icon: https://commons.wikimedia.org/wiki/File:S%C3%ADmbolo_del_Metro_de_Bilbao.svg but it's really cryptic
I added pt-BR translations in 9dbfbd2a1d

@vng @s8321414 @LaoshuBaby
I changed Chinese translations in e258802476

Style/symbols/strings regenerated

@matheusgomesms I removed Bilbao for now. We could theoretically use this icon: https://commons.wikimedia.org/wiki/File:S%C3%ADmbolo_del_Metro_de_Bilbao.svg but it's really cryptic I added pt-BR translations in 9dbfbd2a1d30b74e6d4e4e9aba98bba9193e6b34 @vng @s8321414 @LaoshuBaby I changed Chinese translations in e25880247683de835aa48f603dccbe24fa16cf51 Style/symbols/strings regenerated

vng commented

2022-10-07 19:14:16 +00:00

(Migrated from github.com)

Good! mapcss-mapping.csv should not renumber existing types, so separate Bilbao commit is weird. Better to squash it into first main commit.

Good! mapcss-mapping.csv should **not** renumber existing types, so separate Bilbao commit is weird. Better to squash it into first main commit.

👍 1

LaoshuBaby (Migrated from github.com) approved these changes 2022-10-07 20:46:23 +00:00

biodranik (Migrated from github.com) approved these changes 2022-10-07 21:10:16 +00:00

Outlet2048 commented

2022-11-02 11:07:12 +00:00

(Migrated from github.com)

https://commons.m.wikimedia.org/wiki/Category:S-Bahn_logos

Here's a list of some German S-Bahn icons
Hamburg is in there as well for example
Berlin too

Has someone added Hamburg as well?
I believe Berlin is included in this latest update
Have any other cities been added?

> https://commons.m.wikimedia.org/wiki/Category:S-Bahn_logos > > Here's a list of some German S-Bahn icons > Hamburg is in there as well for example > Berlin too Has someone added Hamburg as well? I believe Berlin is included in this latest update Have any other cities been added?

starsep commented

2022-11-02 19:46:10 +00:00

(Migrated from github.com)

Berlin and Hamburg use S-Bahn icon.
Many more cities have been added: adana, algiers, almaty, amsterdam, ankara, athens, baku, bangkok, beijing, bengalore, brasilia, brescia, brussels, bucharest, budapest, buenos_aires, bursa, cairo, caracas, catania, changchun, chengdu, chicago, chongqing, dalian, delhi, dnepro, dubai, ekb, fukuoka, glasgow, guangzhou, hamburg, helsinki, hiroshima, isfahan, istanbul, izmir, kazan, kharkiv, kobe, kolkata, kunming, kyoto, la, lausanne, lille, lima, lisboa, lisbon, lyon, malaga, manila, maracaibo, mashhad, mecca, medellin, mexico, milan, montreal, munchen, nagoya, nnov, novosibirsk, osaka, oslo, palma, panama, philadelphia, pyongyang, rennes, rio, rotterdam, samara, santiago, santo_domingo, saopaulo, sapporo, sendai, sf, shanghai, shiraz, sofia, stockholm, tabriz, taipei, taoyuan, tashkent, tbilisi, tianjin, tokyo, valencia, vienna, washington, wuhan, yerevan, yokohama,

Berlin and Hamburg use S-Bahn icon. Many more cities have been added: adana, algiers, almaty, amsterdam, ankara, athens, baku, bangkok, beijing, bengalore, brasilia, brescia, brussels, bucharest, budapest, buenos_aires, bursa, cairo, caracas, catania, changchun, chengdu, chicago, chongqing, dalian, delhi, dnepro, dubai, ekb, fukuoka, glasgow, guangzhou, hamburg, helsinki, hiroshima, isfahan, istanbul, izmir, kazan, kharkiv, kobe, kolkata, kunming, kyoto, la, lausanne, lille, lima, lisboa, lisbon, lyon, malaga, manila, maracaibo, mashhad, mecca, medellin, mexico, milan, montreal, munchen, nagoya, nnov, novosibirsk, osaka, oslo, palma, panama, philadelphia, pyongyang, rennes, rio, rotterdam, samara, santiago, santo_domingo, saopaulo, sapporo, sendai, sf, shanghai, shiraz, sofia, stockholm, tabriz, taipei, taoyuan, tashkent, tbilisi, tianjin, tokyo, valencia, vienna, washington, wuhan, yerevan, yokohama,

Outlet2048 commented

2022-11-02 20:17:36 +00:00

(Migrated from github.com)

Hamburg

I see the U-Bahn logo on a station that only has ubahn lines going through
But I don't see any S-Bahn icon as of now
Is this due to multiple different lines using the same station or what conditions have to be met at the osm data level?

> Hamburg I see the U-Bahn logo on a station that only has ubahn lines going through But I don't see any S-Bahn icon as of now Is this due to multiple different lines using the same station or what conditions have to be met at the osm data level?

starsep commented

2022-11-02 20:23:01 +00:00

(Migrated from github.com)

At the moment we don't have icon rendering for S-Bahn.
For U-Bahn in Hamburg it's [railway=station][transport=subway][city=hamburg].
In OSM tags I think it's railway=station + station=subway + bbox for Hamburg

At the moment we don't have icon rendering for S-Bahn. For U-Bahn in Hamburg it's `[railway=station][transport=subway][city=hamburg]`. In OSM tags I think it's `railway=station` + `station=subway` + bbox for Hamburg

Outlet2048 commented

2022-11-02 23:25:51 +00:00

(Migrated from github.com)

icon rendering for S-Bahn.

Should I create a new issue and link to the logo within it?

> icon rendering for S-Bahn. Should I create a new issue and link to the logo within it?

matheusgomesms commented

2022-11-03 14:14:38 +00:00

(Migrated from github.com)

I would also recommend adding Porto Metro logo. The other cities looked very nice! Congrats on the work done!

I would also recommend adding [Porto Metro logo](https://pt.wikipedia.org/wiki/Ficheiro:Porto_Metro_logo.svg). The other cities looked very nice! Congrats on the work done!

This repo is archived. You cannot comment on pull requests.

No reviewers

vng

matheusgomesms

MetehanOzyurek

jimcarst

LaoshuBaby

biodranik
